Okay folks, most of you have seen several of my recent posts on refinishing my 1994 VP DPS sterndrive and my quest to find VP special tools. I thought I would wrap all that together in a series of posts - the first of which is the sterndrive itself, the second is the VP 5.7L GLS engine refinish project and the third and last is the project to repair the engine stringers and all engine room wood in my 1994 Excel 26 SE vessel. I am certainly not an expert in any of these areas (well, maybe I am an expert on the engine stuff as I have been a gearhead all my life) and my intent here is to let others know what they are getting into when they think about undertaking one of these projects.
So here we go with the sterndrive repainting and refurbishing project. First some general information. This is a VolvoPenta DPS that was a total rebuild and repaint when I bought the boat six years ago. The sterndrive is made up of parts from 1994 through 1996 and the repaint was done by a car shop in Orlando right before I bought the boat.
All the inside mechanical parts and pieces are in great shape and the vessel has been very reliable since I owned it, but the appearance aspect has deteriorated rapidly, especially in the last four years since I take the boat yearly on our vacation and it spends two weeks at a stretch in salt water in either Plantation Key or Fort Meyers Beach Florida. The hull has ablative bottom paint so the critters don't attach to it, but the stern drive is a different story and blasting the lower unit with a 2400 psi pressure washer takes the stuff off you can see, but not the stuff you can't get to. That pressure washer is also hard on the paint and my entire stern drive looked pretty ratty, so I started this project along with the project to replace the engine stringers, which had rotted out along with every piece of wood in the engine compartment except the transom. Here is what the unit looked like after removal from the vessel:
My first thought was to pay a marina to repaint the drive, but the two quotes I got were both in excess of $4,000 which I thought was outrageous, and they warranted their work for ZERO days since the boat is used exclusively in salt water in Florida. Oh, and that was after I removed all components from the vessel and brought them to them.
Gotta love the Internet! After extensive research I thought I could this job better and cheaper myself. I knew I would need a media blaster and big compressor since the Craftsman 6 cufm compressor I had would not do the job. Harbor Freight had a 20 pound pressurized media blaster for $60 that came with a hood and ceramic blast tips. I ordered that along with an air dryer and 50 pounds of 80 grit glass bead media.

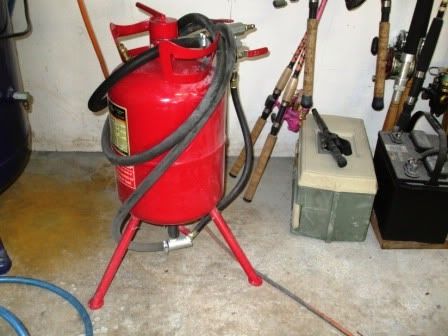

Here's the media blaster which actually holds 25 lbs of media rather well.

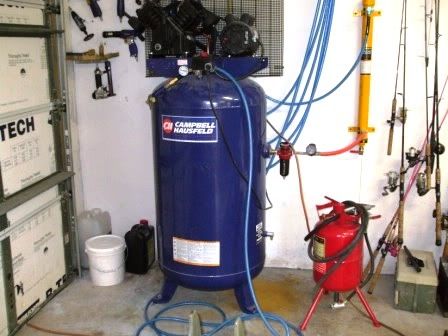

On Christmas Eve I was wandering around my local Lowes and they had a Campbell Hausfeld 18 cfm four-cylinder, 230 VAC compressor with an 80 gallon tank on sale that day only for $750, normal price $1499, so I jumped on that. I also ended up buying and installing an in-line moisture filter and a dessicant dryer - all from HF again. Here is what the installation looks like in my work shop:
I built a blast cabinet out of 1x2 PT lumber and 6 mil sheet plastic stapled to the lumber. The cabinet is 3x4x3 and is light enough to pick up and move from my workshop out to the driveway that goes up to my workshop. When blasting, I cover half the front opening with plywood and then use two other pieces of plywood to close off all of the front opening I don't need to use to access the piece I am working on. I am recovering about 95% of my blast media and recycling it using a fine seive that I also bought from Harbor Freight.
A tip here - the hood that came with the blaster is okay for about 30 minutes of blasting. Go to the HF web site and buy the blaster hood that has the incorporated helmet and ventilator pockets. Oh, and absolutely, positively go buy a respirator from your local Lowes or Home Depot - the cheap disposable lower face masks (the ones that look like what you see so many Japanese using don't cut it.) Cost for those is about $39 and worth every penny.

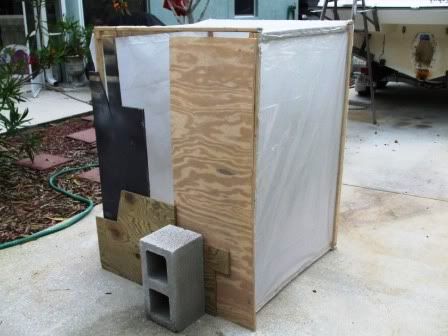

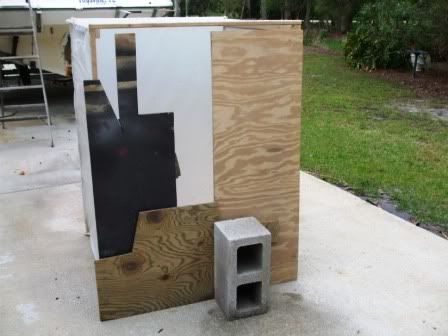

Here is view 1 of my home-made blast cabinet:
Another view of the blast cabinet:
The dark spot in the rear is where I managed to poke the end of the drive shaft through the 6 mil thick plastic and then patched it with duct tape.
Here is what the cabinet looks like when I have it set up for blasting. I am using scraps of plywood and have a total of maybe $30 tied up in this blast cabinet:
Another view:
I ended up separating the upper and lower units because they were just too big and too damned heavy to maneuver around in my home-made blast cabinet. I started using all 80 grit glass beads but they did not cut the old primer very well although they blasted the top coat off as pretty as you could please. Back to Harbor Freight where I ordered a 44 lb container of aluminum oxide grit - also about 80 grit - and I mixed that in with the glass beads at a ratio of about 60% glass beads and 40% aluminum grit. This did a much better job of cutting right down to the bare aluminum and leaving a finely peened finish that was totally free of primer and top coat as well as all corrosion and barnacle shells. It takes me about 40 minutes to go through a 25 lb fill in the blaster and this will strip maybe a square foot of surface, so it is slow going. I ended up ordering another 100 lbs of glass bead media and another 25 pounds of aluminum oxide grit for the whole project.
Here is the result of the media blasting:

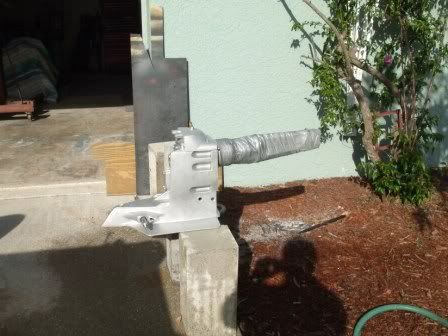

Upper unit starboard side:

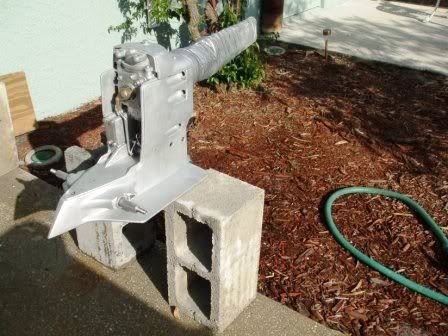

Upper unit starboard side from the rear:

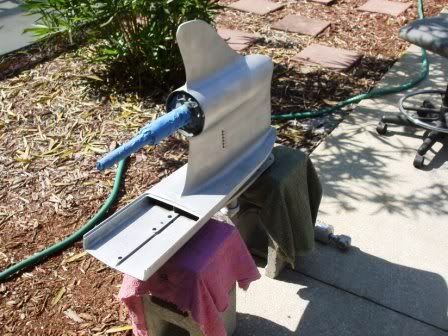

Lower unit:

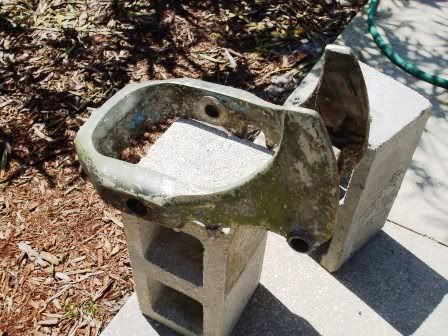

Gimbal ring before bead blasting:

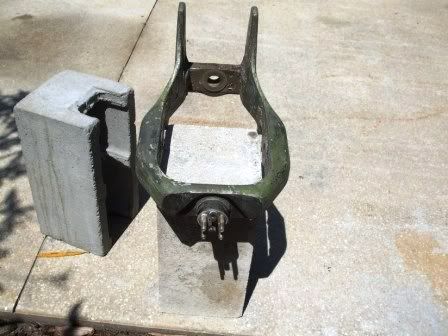

Gimbal ring view 2 before bead blasting:

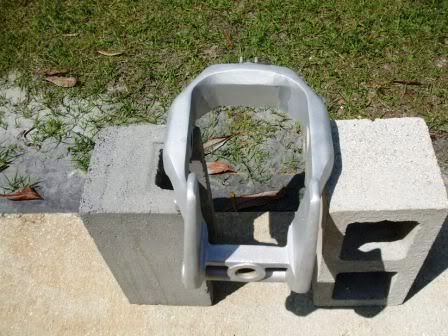

Gimbal ring after bead blasting:
Gimbal ring view 2 after bead blasting:

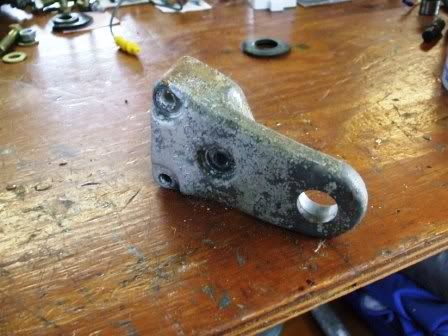

Gimbal lower pivot arm before bead blasting:

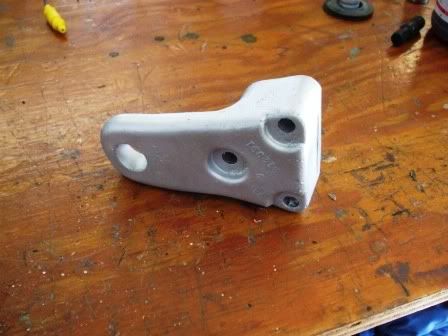

Gimbal lower pivot arm after bead blasting:
Gimbal housing before blasting:
Another view of the gimbal housing before blasting:

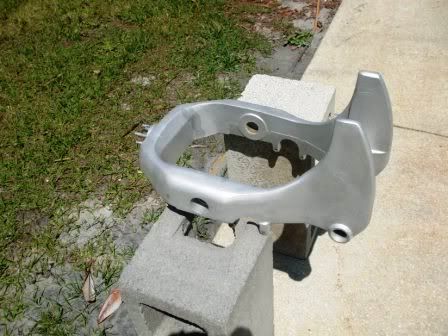

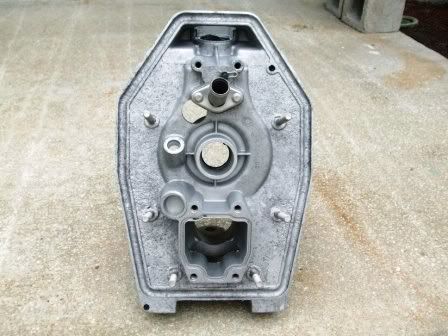

Gimbal housing after blasting:
After reading and re-reading GeeBee's post on this forum on painting outdrives, I purchased a quart bottle of Alumiprep and a quart bottle of Alodine from AircraftSpruce.com. After a thorough washing of the parts with hot water and drying with my air hose I applied a 50/50 mixture of Alumiprep and water to the parts to acid wash them. After three minutes I rinsed, rinsed, rinsed and rinsed some more all the parts and again dried them with the air hose.
I then started applying coats of the Alodine solution at full strength with a brush and allowed each coat to dry for a full 6 hours before applying the next coat. I ended up with a total of eight coats of Alodine on all parts before I was satisfied with the results.

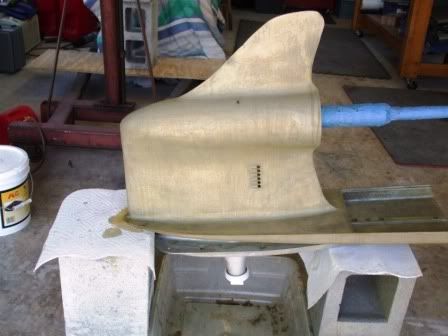

Here is the lower unit with the Alodine completed:

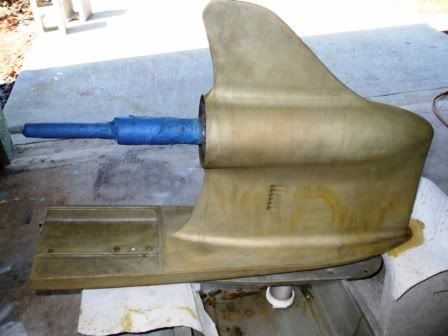

The other side of the lower unit with Alodine completed:
I made sure to seal up all holes including threaded bolt holes before the acid wash and Alodine and as you can see from the pictures I used PVC pipe fittings attached with blue RTV to seal up the internal oil gallerys before starting the blasting.
This has been a months long process. I still work full time so I can only work on this after work and on week-ends. I find that after 75 pounds of grit - three blaster loads and about 2 hours of time - I am filthy, hot, tired and discouraged at how slowly everything progresses. After reclaiming all my media (a process of scooping the used media up in my hands, dumping it through a seive into a container, cleaning the seive and then washing down my concrete driveway) I am about beat for the day and call it quits. However, I am really happy with the results so far and since I am on the last piece, the inner transom plate, I am near the end of the dirty part. All that will be left is to get a local auto shop with a paint booth to paint the pieces with the chromate epoxy primer and two top coats of some color of gray to come close to the original VP finish.
I will post more as I progress. Oh, and just because I thought some of the folks who have seen my name for long time now just might have a passing interest, here I am:
|
